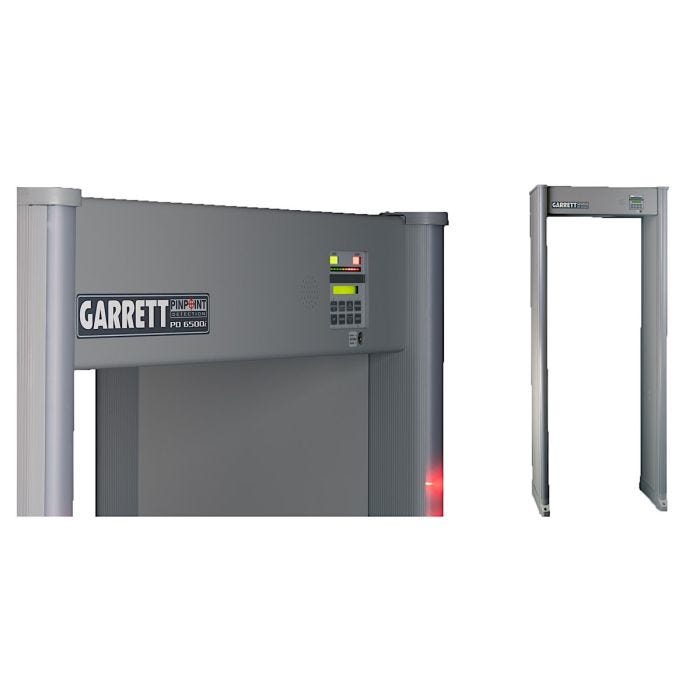

Garrett PD6500i Walk-Through Metal Detectors

With more than four times the detection coils of competitive models, the PD 6500i™ provides uniform detection and precise pinpointing. Independent zone indicator lights on both side panels identify not only height but also left, center and right locations for one or more objects passing through the archway.

Detection Zones: 33 zones (left, right and center); visual and remote alarms.

Multi-Unit Synchronization: Synchronization with wired AC power lines or with manual frequency selection for wireless operation

Visual Displays: LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images

Access Control: Eight-button keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad.

Passageway Interior Size:

• Width 30" (0.76 m)
• Height 80" (2.03 m)
• Depth 23" (0.58 m)

(32” versions are also available)

Overall Exterior Size:

• Width 35" (0.90 m)
• Height 87" (2.21 m)
• Depth 23" (0.58 m)

Shipping Weight: 165 lbs. (74 kg)

Operating Temperatures: -4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing.

Power:Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.

Regulatory Information: Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE.

Weatherproofing: Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection

Construction: Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.

Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices. Optional Relay module connected via RS 485 cable provides NO/NC relay contact

(optional) Remote Control: Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote

(optional) Networking: Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.

Warranty: 24 months, limited parts and labor
